Fuel Injection Systems, Sniper EFI, Autolite 1100, Throttle Body, Gold, 1100 Flange, Injectors, Pressure Regulator, Harness, Tuner, Kit

Holley Sniper EFI Autolite 1100 Fuel Injection Systems

Holley Sniper EFI Autolite 1100 fuel injection systems let you convert your classic Autolite 1100 carburetor to EFI. These units offer superior throttle response and WOT power over the carb—and you will likely experience increased fuel economy. Put an end to cold start issues, hesitations, vapor lock, and flooding with the accuracy of EFI! You can also use the Sniper EFI to control the ignition timing, taking electronic fuel injection to the next level. These Holley upgrade systems feature a 100 lbs./hr. fuel injector capable of supporting 175 hp on naturally aspirated engines. For your high performance needs, look to Holley!

Standard Sniper EFI system features:

* Bolt-on Autolite 1100 carburetor replacement
* Throttle body-mounted ECU; no extra boxes to mount
* Only four wiring connections required: Battery +, battery -, switched ignition, and rpm
* Internal fuel pressure regulator eliminated the hassle of plumbing an external fuel pressure regulator (preset to 58.5 psi)
* Integrated ignition timing control
* High-resolution full-color touch screen for initial setup, tuning, and gauge displays
* Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!); no laptop required
* Self-tuning ECU means you don't have to be a computer/tuning wiz to have EFI
* The included Genuine Bosch LSU 4.9 wideband oxygen sensor provides real-time Fuel Map Learn
* OEM-style TPS/IAC and fuel pressure regulator—for years of dependable service
* Included clamp-on oxygen sensor kit for 2 in. exhaust ensures a leak-free oxygen sensor installation, with stainless steel T-bolt clamps and a stainless steel (weldable) oxygen sensor flange
* Systems are an ideal conversion kit for 1963-67 Inline 6-cylinder Ford engines from 144 ci. to 300 ci.

Fuel Injection Systems, Sniper EFI, 2300, Throttle Body, Black, 2300 Flange, Injectors, Fuel Pump, Pressure Regulator, Harness, Tuner, Kit

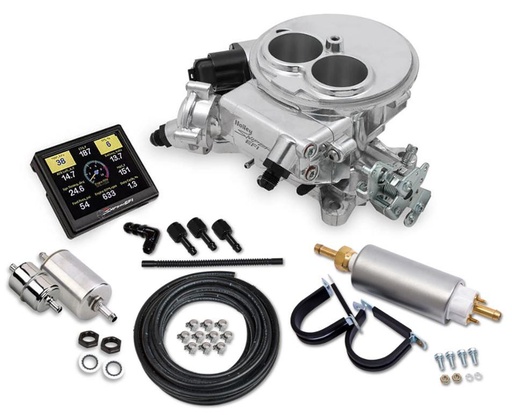

Holley Sniper EFI 2300 Two-Barrel Fuel Injection Systems

Introducing Holley Sniper EFI 2300 two-barrel fuel injection systems! They're perfect for any vehicle that came standard with a 2300 Holley flange, like some Fairlanes, F100s, Javelins, Mustangs, Thunderbirds, Cougars, and more. These systems are economically priced so you can have all the benefits of EFI and still have money to finish or upgrade your ride! Put an end to cold start issues, hesitations, vapor lock, and flooding. Upgrade to Sniper EFI and get the tactical accuracy of EFI today!

Features/Benefits:

* Bolt-on 2300 flange carburetor replacement
* Throttle body mounted ECU (kits only); no extra boxes to mount
* Supports up to 350 hp with two 100 lb./hr. injectors
* Only 4 wiring connections required! (Battery +, Battery -, Switched Ignition, and RPM)
* Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (preset to 58.5 psi)
* Integrated ignition timing control
* High-resolution full color touch screen for initial setup, tuning, and gauge displays
* Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own); NO laptop required!
* Self-tuning ECU means you don't have to be a computer/tuning wiz to have EFI
* The included Genuine Bosch LSU 4.9 wideband oxygen sensor provides real-time fuel map learn
* OEM-style TPS/IAC and fuel pressure regulator for years of dependable service
* Included clamp-on oxygen sensor kit for 2.25 in. exhaust ensures a leak-free oxygen sensor installation, with stainless steel T-bolt clamps and a stainless steel (weldable) oxygen sensor flange
* Equipped with C4 / C6 Ford transmission kick down lever, as well as TH350, 400, and 700R4 provisions
* Accepts many common 5 1/8 in. OEM or aftermarket air cleaner assemblies
* Master Kit includes complete fuel system consisting of: 20 ft. of 3/8 in. vapor guard fuel hose, 12-920 fuel pump, filters, necessary hardware and bulkhead fitting to return fuel into the tank
* Sniper EFI software free to download which allows for real time tuning

¿Qué trae la caja del Holley 550-849K?

Un cuerpo de acelerador estilo 2300, diseñado para reemplazar carburadores de 2 bocas (2-barrel).

Una ECU integrada montada directamente sobre el cuerpo de acelerador.

Dos inyectores de combustible de alto flujo.

Regulador de presión de combustible interno ajustado a 58.5 PSI.

Sensores electrónicos necesarios para el funcionamiento: TPS, IAC y sensor MAP de 2 bar.

Arnés de cables completo para instalación plug and play.

Múltiples conectores y extensiones eléctricas.

Junta (gasket) para el montaje del cuerpo de acelerador.

Abrazaderas, tornillería y hardware para instalación.

Sensor de oxígeno (wideband O2) Bosch LSU 4.9.

Brida (bung) para instalar la sonda en el escape y abrazaderas clamp-on para vehículos sin bung soldado.

Manual de instalación y guía rápida.

Pantalla de mano (handheld) para configuración, monitoreo y puesta a punto del sistema.

Incluye bomba de combustible tipo inline.

Incluye mangueras de combustible específicas: 20 pies de manguera Vapor Guard de 3/8, filtros, y todo el hardware necesario para instalar un sistema de retorno de combustible al tanque.

Para qué sirve este kit?

Este kit está diseñado para convertir motores que utilizaban un carburador Autolite 1100 a un sistema de inyección electrónica plug and play. Mejora el arranque en frío, la respuesta del acelerador y elimina problemas comunes de carburadores como vacíos, vapor-lock e inundaciones. La puesta a punto es simple gracias al sistema de autoajuste.

4'' (102 mm) Flange Diameter
Tapered Filter Flange Dia.- F: 4'', 102 mm Base Outside Dia.: 6'', 152 mm Top Outside Dia.: 4.5'', 114 mm Length- L: 7'', 178 mm Top Style: Rubber Flange Length-FL: 0.625'', 16 mm Flange Angle-FA: 0º Flange Offset: 0''

Round Tapered
Air Intake Filter Black 3", 3.5", & 4" Inlets 6.719" Height 6" Base Diameter 4.75" Top Diameter

X-Stream Air Flow Elements
14'' X-Stream Filter Element Outside Diameter: 14" Inside Diameter: 12" Height: 3-1/16''

X-Stream Air Flow Elements
14'' X-Stream Filter Element Outside Diameter: 14" Inside Diameter: 12" Height: 4''

Ford Mustang

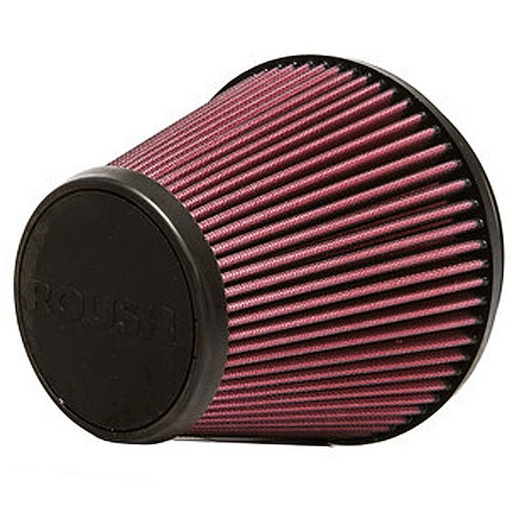

Replacement Oiled Air Filter Fits 2005-2009 Mustang V8 Cold Air Intake 832-402099 Cotton Gauze Red

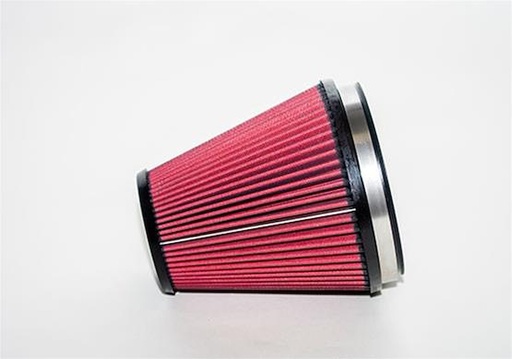

Replacement Air Filter 2015-2019 Ford 2.3L/2.7L/3.5L/3.7L/5.0L Engines Cotton Gauze Replacement for Roush Cold Air Intakes Red Sold Individually
